Inconel 600

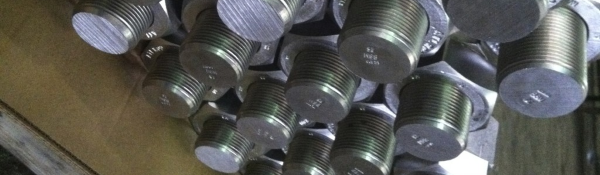

Inconel 600 Hex Bolts, Nuts, and Studs
Atlanta Rod manufactures Inconel 600 bolts, studs, and nuts to your custom specifications, and we guarantee to meet your delivery schedule. At Atlanta Rod and Manufacturing Co., Inc. we strive to provide our customers with the most innovative products and quality materials in the industry.
Inconel 600: Nickel-Chromium-Iron Alloy
Inconel 600 is a nickel-chromium-iron alloy that is a standard material for applications which require resistance to corrosion and heat. Inconel 600 also has excellent mechanical properties and presents the desirable combination of high strength and good workability.
The high nickel content gives Inconel 600 resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking.
Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. Inconel 600 is not precipitation hardenable; it is hardened and strengthened only by cold work.
Inconel 600 is used extensively in the chemical industry for its strength and corrosion resistance.
Applications include heaters, stills, bubble towers and condensers for processing of fatty acids; evaporator tubes, tube sheets and flaking trays for the manufacture of sodium sulfide; and equipment for handling abietic acid in the manufacture of paper pulp.
Inconel 600 Mechanics
Mechanical Properties of Inconel 600 Round Bar
Condition and Diameter |
Tensile Strength, psi (MPa) |
Yield Strength, psi (MPa) |
Cold-worked rounds (as worked): | ||
Under ½” (12.7mm) | 120 000 (825) |
90 000 (620) |
½” to 1” (12.7 to 25.4mm) |
110 000 (760) |
85 000 (585) |
Over 1” to 2 ½” (25.4 to 63.5mm) |
105 000 (725) |
80 000 (550) |
Hot worked rounds (as worked): | ||
¼” to ½” (6.4 to 12.7mm) |
95 000 (655) |
45 000 (310) |
Over ½” to 3” (12.7 to 76.2mm) |
90 000 (620) |
40 000 (275) |
Inconel 600 Composition
Chemical Composition, %
Element |
Min |
Max |
Carbon | — | 0.10 |
Nickel |
72.0 |
— |
Chromium |
14.0 |
17.0 |
Iron |
6.00 |
10.00 |
Silicon | — | 0.50 |
Manganese |
— |
1.00 |
Sulfur |
— |
0.015 |
Copper |
— |
0.50 |
Information from Special Metals Corporation, owner of the Inconel 600 registered trademark. See Also Inconel on Wikipedia.
